Jumper enables discontinuous transcript

Discontinuous Transcript Assembly problem

To formulate the DISCONTINUOUS TRANSCRIPT ASSEMBLY problem, we define discontinuous transcripts as sequences of segments whose order matches the reference genome. More formally, we have the following definition.

Definition 1

Given a reference genome, a discontinuous transcript T is a sequence v₁, …, v_∣T∣ of segments where (i) each segment corresponds to a contiguous region in the reference genome, (ii) segment v_i precedes segment v_i + 1 in the reference genome for all i ∈ {1, …, ∣T∣ − 1}, (iii) segment v₁ contains the 5ʹ end of the reference genome and (iv) segment v_∣T∣ contains the 3ʹ end of the reference genome.

While the genomic transcript T₀ matches the reference genome², subgenomic transcripts contain jumps and correspond to subgenomic RNAs (sgRNAs)³. Discontinuous transcripts ${{{{{{{\mathcal{T}}}}}}}}=\{{T}_{i}\}$ occur in abundances c = [c_i] where c_i ≥ 0 is the relative abundance of transcript T_i such that $\mathop{\sum }\nolimits_{i = 1}^{| {{{{{{{\mathcal{T}}}}}}}}| }{c}_{i}=1$. In this work, we focus on coronavirus sequencing samples obtained using Illumina sequencing, where reads originate from the reference genome of length L of about 10–30 Kbp and have a fixed length ℓ ranging from 100 to 400 bp. We refer to Supplementary Note A.3 for a discussion on why transcript assembly remains relevant for such samples in light of the availability long-read sequencing samples. For ease of exposition, we describe the formulation in the context of single-end reads, but in practice we use the paired-end information if it is available. We refer to Supplementary Note B.5 for details on the paired-end formulation.

As ℓ ≪ L, the identity of the transcript of origin for a given read is ambiguous. Therefore, we need to use computational methods to reconstruct the transcripts and their abundances from the sequencing reads. Specifically, given a coronavirus reference genome of length L and reads of a fixed length ℓ, we use a splice-aware aligner such as STAR²⁶ to obtain an alignment ${{{{{{{\mathcal{R}}}}}}}}$. This alignment provides information about the abundance c and composition of the underlying transcripts ${{{{{{{\mathcal{T}}}}}}}}$ in the following two ways. First, the depth, or the number of reads along the genome is informative for quantifying the abundance c of the transcripts. Second, the composition of the transcripts ${{{{{{{\mathcal{T}}}}}}}}$ is embedded in split reads, which are reads that align to multiple distinct regions in the reference genome (Fig. 1b). Since the alignment ${{{{{{{\mathcal{R}}}}}}}}$ is composed of reads from discontinuous transcripts, the alignment satisfies the following two properties. First, the genomic regions induced by any read in ${{{{{{{\mathcal{R}}}}}}}}$, including split reads, are ordered from the 5ʹ to 3ʹ direction of the reference genome. Second, due to the presence of the genomic transcript T₀, every position in the reference genome can be expected to be covered by a read.

To infer ${{{{{{{\mathcal{T}}}}}}}}$ and c from ${{{{{{{\mathcal{R}}}}}}}}$, most reference-based transcript assembly methods employ a splice graph^11,12,18. Informally, the nodes of this graph correspond to contiguous segments of the genome (i.e. are not separated by any split read) and directed edges correspond to pairs of segments that are spanned by the same read. Due to the aforementioned properties of an alignment ${{{{{{{\mathcal{R}}}}}}}}$ of reads from discontinuous transcripts, the edges of the corresponding splice graph can be partitioned into two sets. First, continuous edges correspond to edges between segments that are adjacent in the reference genome. Conversely, due to the presence of reads from the genomic transcript T₀, every pair of adjacent segments in the reference genome will be connected by a continuous edge. Second, discontinuous edges connect non-adjacent segments, which indicate the jumps made by the viral RdRp during discontinuous transcription. Both types of directed edges connect segments in the same as the reference genome. Thus, the splice graph obtained from ${{{{{{{\mathcal{R}}}}}}}}$ is a directed acyclic graph (DAG) with a Hamiltonian path composed of the continuous edges.

We now show an alternative, more efficient construction of the same graph using only the split reads in an alignment ${{{{{{{\mathcal{R}}}}}}}}$ of reads from discontinuous transcripts. Each split read $r\in {{{{{{{\mathcal{R}}}}}}}}$ maps to q ≥ 2 distinct regions in the reference genome. Each pair of regions that are adjacent in the split read are separated by two positions v, w (where w − v ≥ 2) in the reference genome called junctions. Thus, each split read contributes 2q − 2 junctions. The collective set of junctions contributed by all split reads in ${{{{{{{\mathcal{R}}}}}}}}$ in combination with positions {1, L} induces a partition of the reference genome into closed intervals [v⁻, v⁺] of junctions that are consecutive in the reference genome (i.e. there exists no other junction that occurs in between v⁻ and v⁺). The resulting set of segments equals the node set V of segment graph G (Fig. 2a). The edge set E of segment graph G is composed of continuous edges E^→ and discontinuous edges E^↷. Continuous edges E^→ are composed of ordered pairs (v = [v⁻, v⁺], w = [w⁻, w⁺]) of nodes that correspond to segments that are adjacent in the reference genome, i.e. where v⁺ = w⁻. On the other hand, discontinuous edges E^↷ are composed of ordered pairs (v = [v⁻, v⁺], w = [w⁻, w⁺]) of nodes that corresponds to segments that are adjacent in at least one split read in ${{{{{{{\mathcal{R}}}}}}}}$ but not adjacent in the reference genome (i.e. w⁻ − v⁺ ≥ 2). Fig. 1c shows an example of a segment graph.

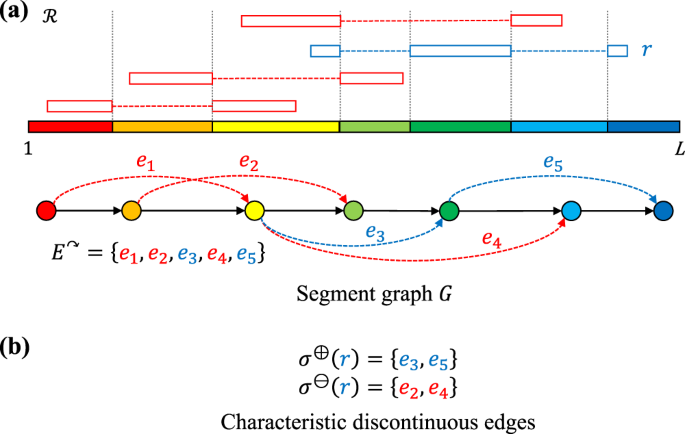

**Fig. 2: Schematic describing split reads and characteristic discontinuous edges.**

Definition 2

Given an alignment ${{{{{{{\mathcal{R}}}}}}}}$ of reads from discontinuous transcripts, the corresponding segment graph G = (V, E^→ ∪ E^↷) is a directed graph whose node set V equals the set of segments induced by the junctions of split reads in ${{{{{{{\mathcal{R}}}}}}}}$ and whose edge set E = E^→ ∪ E^↷ is composed of edges (v = [v⁻, v⁺], w = [w⁻, w⁺]) that are either continuous, i.e. v⁺ = w⁻, or discontinuous, i.e. w⁻ − v⁺ ≥ 2 and there exists a split read where junctions v⁺ and w⁻ are adjacent.

Thus, by definition any segment graph will have a Hamiltonian path induced by the continuous edges E^→. Moreover, the segment graph obtained from an alignment of reads from discontinuous transcripts will be a DAG.

Observation 1

The segment graph G obtained from an alignment of reads from discontinuous transcripts is a directed acyclic graph with a (unique) Hamiltonian path.

By the above observation, G has a unique source node s and sink node t. Importantly, each transcript $T\in {{{{{{{\mathcal{T}}}}}}}}$ that is compatible with an alignment ${{{{{{{\mathcal{R}}}}}}}}$ corresponds to an s − t path π(T) in G. Here, a path π is a subset of edges E that can be ordered (v₁, w₁), …, (v_∣π∣, w_∣π∣) such that w_i = v_i+1 for all i ∈ [∣π∣ − 1] = {1, …, ∣π∣ − 1}. While splice graphs of general alignments are DAGs and typically have a unique source and sink node as well, they do not necessarily contain a Hamiltonian path^11,19,27,28.

Our goal is to find a set ${{{{{{{\mathcal{T}}}}}}}}$ of transcripts and their abundances c that maximize the posterior probability

$$\Pr ({{{{{{{\mathcal{T}}}}}}}},{{{{{{{\bf{c}}}}}}}}| {{{{{{{\mathcal{R}}}}}}}})\propto \Pr ({{{{{{{\mathcal{R}}}}}}}}| {{{{{{{\mathcal{T}}}}}}}},{{{{{{{\bf{c}}}}}}}})\Pr ({{{{{{{\mathcal{T}}}}}}}},{{{{{{{\bf{c}}}}}}}}).$$

Under an uninformative, flat prior $\Pr ({{{{{{{\mathcal{T}}}}}}}},{{{{{{{\bf{c}}}}}}}})$, this is equivalent to maximizing the probability $\Pr ({{{{{{{\mathcal{R}}}}}}}}| {{{{{{{\mathcal{T}}}}}}}},{{{{{{{\bf{c}}}}}}}})$. We use the segment graph G to compute the probability $\Pr ({{{{{{{\mathcal{R}}}}}}}}| {{{{{{{\mathcal{T}}}}}}}},{{{{{{{\bf{c}}}}}}}})$ of observing an alignment ${{{{{{{\mathcal{R}}}}}}}}$ given transcripts ${{{{{{{\mathcal{T}}}}}}}}$ and abundances c. We follow the same generative model which has been extensively used for transcription quantification^22,23,29. The notations used in this paper best resemble the formulation described in ref. ²⁸. Let ${{{{{{{\mathcal{R}}}}}}}}$ be composed of reads {r₁, …, r_n} and the set ${{{{{{{\mathcal{T}}}}}}}}$ of transcripts be {T₁, …, T_k} with lengths L₁, …, L_k and abundances c = [c₁, …, c_k]. In line with current literature, reads ${{{{{{{\mathcal{R}}}}}}}}$ are generated independently from transcripts ${{{{{{{\mathcal{T}}}}}}}}$ with abundances c. Further, we must marginalize over the set of transcripts ${{{{{{{\mathcal{T}}}}}}}}$ as the transcript of origin of any given read is typically unknown, since ℓ ≪ L. Moreover, we assume that the fixed read length ℓ is much smaller than the length L_i of any transcript T_i. As such, we have that $\Pr ({{{{{{{\mathcal{R}}}}}}}}| {{{{{{{\mathcal{T}}}}}}}},{{{{{{{\bf{c}}}}}}}})$ equals

$$\Pr ({{{{{{{\mathcal{R}}}}}}}}| {{{{{{{\mathcal{T}}}}}}}},{{{{{{{\bf{c}}}}}}}}) = \mathop{\prod }\limits_{j=1}^{n}\Pr ({r}_{j}| {{{{{{{\mathcal{T}}}}}}}},{{{{{{{\bf{c}}}}}}}})\\ = \mathop{\prod }\limits_{j = 1}^{n}\frac{1}{\mathop{\sum }\nolimits_{b=1}^{k}{c}_{b}{L}_{b}}\mathop{\sum}\limits_{i:\pi ({T}_{i})\supseteq \pi ({r}_{j})}{c}_{i},$$

(1)

where π(T) ⊆ E is the s − t path corresponding to transcript T and π(r) ⊆ E is the path induced by the ordered sequence of segments (or nodes of G) spanned by read r. By construction, π(T) ⊇ π(r) is a necessary condition for transcript T to be a candidate transcript of origin of read r. Supplementary Note A.2 gives the derivation of the above equation (Eq. (1)). Our goal is to find ${{{{{{{\mathrm{argmax}}}}}}}\,}_{{{{{{{{\mathcal{T}}}}}}}},{{{{{{{\bf{c}}}}}}}}}\Pr ({{{{{{{\mathcal{R}}}}}}}}| {{{{{{{\mathcal{T}}}}}}}},{{{{{{{\bf{c}}}}}}}})$, leading to the following problem.

Problem 1

(DISCONTINUOUS TRANSCRIPT ASSEMBLY(DTA)). Given alignment ${{{{{{{\mathcal{R}}}}}}}}$ and integer k, find discontinuous transcripts ${{{{{{{\mathcal{T}}}}}}}}=\{{T}_{1},\ldots ,{T}_{k}\}$ and abundances c = [c₁, …, c_k] such that (i) each transcript ${T}_{i}\in {{{{{{{\mathcal{T}}}}}}}}$ is an s − t path in segment graph G, and (ii) $\Pr ({{{{{{{\mathcal{R}}}}}}}}| {{{{{{{\mathcal{T}}}}}}}},{{{{{{{\bf{c}}}}}}}})$ is maximum.

In practice, we set the value of k to a large number (e.g. k = 50) and restrict the subsequent analyses to the set of transcripts whose abundance exceeds a threshold value (e.g. ≥0.001). The probability $P({{{{{{{\mathcal{R}}}}}}}}| {{{{{{{\mathcal{T}}}}}}}},{{{{{{{\bf{c}}}}}}}})$, in Eq. (1), is expressed in terms of the observed reads and their induced paths π(r) ⊆ E(G) in the segment graph G. In the ‘Methods’ section, we describe a more concise way of expressing the probability $P({{{{{{{\mathcal{R}}}}}}}}| {{{{{{{\mathcal{T}}}}}}}},{{{{{{{\bf{c}}}}}}}})$ using the fact that the segment graph G is a DAG with a unique Hamiltonian path. This concise characterization enables us to design a progressive heuristic that incorporates an efficient mixed linear integer program (MILP) to solve the DTA problem (details are in the ‘Methods’ section). Our resulting method, JUMPER, is implemented in Python 3 using Gurobi³⁰ (version 9.0.3) to solve the MILP and pysam³¹ for reading and processing the input BAM file. JUMPER is available at https://github.com/elkebir-group/Jumper.

Experimental evaluation

We begin by establishing terminology that will be used in the rest of the section. A discontinuous edge (v = [v⁻, v⁺], w = [w⁻, w⁺]) is canonical provided its 5ʹ junction v⁺ occurs in the transcription regulating leader sequence (TRS-L), i.e. between positions 50 and 85, and the first occurrence of ‘AUG’ downstream of the 3ʹ junction w⁻ position coincides with the start codon of a known open reading frame (ORF), otherwise the discontinuous edge is called non-canonical. Note that the range 50−85 is chosen since it contains the TRS-L regions of the SARS-CoV-1³², SARS-CoV-2³ and MERS-CoV³² genomes analyzed in this paper. In a similar vein, a transcript is canonical if it contains at most one canonical and no non-canonical discontinuous edges, otherwise the transcript is non-canonical. We ran all experiments on a server with two 2.6 GHz CPUs and 512 GB of RAM.

Simulations

We generated our simulation instances using a segment graph G obtained from a short-read sample (SRR11409417). Following Kim et al.³, we used fastp to trim short reads (trimming parameter set to 10 nucleotides), which were input to STAR run in two-pass mode yielding an alignment ${{{{{{{\mathcal{R}}}}}}}}$. Figure 3a shows the sashimi plot of the canonical and the non-canonical discontinuous edges (mappings) supported by the reads in the sample. From ${{{{{{{\mathcal{R}}}}}}}}$, we obtained G by only including discontinuous edges supported by at least 20 reads. The segment graph G has ∣V∣ = 39 nodes and ∣E∣ = 67 edges, which include ∣E^↷∣ = 29 discontinuous edges and ∣E^→∣ = 38 continuous edges. The discontinuous edges are subdivided into 14 canonical discontinuous edges that produce a known ORF and 15 non-canonical discontinuous edges. Next, we generated transcripts ${{{{{{{\mathcal{T}}}}}}}}$ and their abundances c from G using the negative-sense discontinuous transcription model (described in Supplementary Note C.1). Upon generating the transcripts, we simulated the generation and sequencing of RNA-seq data, and aligned the simulated reads using STAR²⁶. We generated five independent pairs $({{{{{{{\mathcal{T}}}}}}}},{{{{{{{\bf{c}}}}}}}})$ of transcripts and abundances (Fig. 3b). For each pair $({{{{{{{\mathcal{T}}}}}}}},{{{{{{{\bf{c}}}}}}}})$ we generated five paired-end short-read sequencing simulations using polyester³³. Thus, in total we generated 5 × 5 = 25 simulation instances.

Fig. 3: JUMPER consistently outperforms SCALLOP11 and STRINGTIE12 in reconstruction of viral transcripts from simulated SARS-CoV-2 sequencing data. — **Fig. 3: JUMPER consistently outperforms SCALLOP¹¹ and STRINGTIE¹² in reconstruction of viral transcripts from simulated SARS-CoV-2 sequencing data.**

We compare the performance of our method JUMPER with two other reference-based transcript assembly methods, SCALLOP and STRINGTIE. Note that our method, JUMPER, does not use prior knowledge about the underlying negative-sense discontinuous transcription model to infer the viral transcripts from the simulated data. To avoid including false-positive discontinuous edges, we set Λ = 100 so that JUMPER discards discontinuous edges with fewer than 100 supporting reads. For SCALLOP and STRINGTIE, we performed a sweep on their input parameters and report the best results here. We begin by comparing the transcripts predicted by the three methods to the ground-truth transcripts. Specifically, a predicted transcript is correct if there exists a transcript in the ground truth whose junction positions match the predicted junctions positions within a tolerance of ten nucleotides.

Figure 3c shows the F₁ score (harmonic mean of recall and precision) of the three methods for all the simulation instances, showing that JUMPER achieves a higher F₁ score (median of 0.255 and range [0.176, 0.339]) compared to SCALLOP (median of 0.062 and range [0.0145, 0.173]) and STRINGTIE (median of 0.019 and range [0.0114, 0.0412]). Supplementary Fig. 5 shows that JUMPER’s improved performance holds for both the recall and the precision with running times comparable to the SCALLOP and STRINGTIE. To investigate the effect of threshold parameter Λ on the performance of JUMPER, we ran our method on the simulated instances with Λ ∈ {10, 50, 100, 200}. Supplementary Fig. 6 shows that JUMPER outperforms SCALLOP and STRINGTIE for all values of Λ, although it incurs significantly more runtime for Λ = 10.

To better understand the tradeoff between precision and recall, we zoom in on five simulation instances with distinct pairs $({{{{{{{\mathcal{T}}}}}}}},{{{{{{{\bf{c}}}}}}}})$. Figure 3d shows the precision and recall achieved by each method for each of these five simulation instances, demonstrating that JUMPER consistently outperforms both SCALLOP and STRINGTIE. On average, JUMPER recalls 5 times more transcripts than SCALLOP and 11 times more transcripts than STRINGTIE while also having higher precision in all simulated cases. Supplementary Fig. 7 shows that all three methods produce similar precision and recall values for different sequencing replicates of the same simulated instance of $({{{{{{{\mathcal{T}}}}}}}},{{{{{{{\bf{c}}}}}}}})$, demonstrating consistency in results. Figure 3e shows the number of canonical and non-canonical transcripts generated by the three methods that match the ground truth for each simulated instance, with JUMPER consistently recalling a larger number of ground-truth canonical and non-canonical transcripts. To assess the accuracy of JUMPER’s estimation of the abundances c, we computed the Pearson correlation between the abundances of the correctly recalled transcripts and their ground-truth abundances. We find that JUMPER achieves a median Pearson correlation of 0.979, and that the use of SALMON to re-estimate abundances improves the median correlation to 0.985 (Supplementary Fig. 8).

In summary, we found that JUMPER correctly predicts higher number of both canonical and non-canonical transcripts compared to SCALLOP and STRINGTIE for all the simulated instances (summarized in Supplementary Table 3). We observe similar trends on simulated instances of a human gene (see Supplementary Note C.4).

Viral transcript assembly in SARS-CoV-2-infected Vero cells

Recently, Kim et al.³ explored the transcriptomic architecture of SARS-CoV-2 by performing short-read as well as long-read sequencing of Vero cells infected by the virus. The authors used oligo(dT) amplification, which targets the poly(A) tail at the 3ʹ end of messenger RNAs, thus limiting positional bias that would occur when using SARS-CoV-2-specific primers^34,35. Subsequently, the authors aligned the resulting reads using splice-aware aligners, STAR²⁶ for the short-read sample (median depth of 1763) and minimap2³⁶ for the long-read sample (median depth of 6707 and mean length of 2875 bp). For both complementary sequencing techniques, the authors observed split reads that were indicative of canonical as well as non-canonical transcription events. While this previous work quantified the fraction of split reads supporting each discontinuous transcription event, it did not attempt to assemble complete viral transcripts.

We used JUMPER to reconstruct the SARS-CoV-2 transcriptome of the short-read sequencing sample using the BAM file obtained by running Kim et al.’s pipeline³. This was followed by running SALMON to identify precise transcript abundances. We note that running SCALLOP on the short-read data resulted in only a single, complete canonical transcript (corresponding to ‘N’) but required subsampling of the BAM file (to 20%) due to memory constraints, whereas STRINGTIE produced two incomplete transcripts (‘ORF3a’ and a non-canonical transcript with low support). On a segment graph with ∣V∣ = 59 nodes and ∣E∣ = 93 edges comprised of ∣E^↷∣ = 35 most abundant discontinuous edges, 18 of which canonical and 17 non-canonical (Fig. 4a), JUMPER identified 33 transcripts, 17 of which have an abundance of at least 0.001 as determined by SALMON (Fig. 4b). A subset of eight transcripts are canonical, containing at most one discontinuous edge with the 5ʹ junction in TRS-L and the first ATG downstream of the 3ʹ junction coinciding with the start codon of a known ORF. These canonical transcripts correspond to ORF1ab, ORF3a, E, M, ORF7a, ORF7b, ORF8, N. In particular, ORF1ab (abundance of 0.008) corresponds to the complete viral genome, necessary for viral replication. Notably, ORF10 is the only missing ORF in the identified transcriptome, which is in line with previous studies^3,5 that did not find evidence for active transcription of ORF10.

Fig. 4: Using short-read data of SARS-CoV-2-infected Vero cells3, JUMPER identifies canonical and non-canonical transcripts that are well supported by long-read sequences of the same sample. — **Fig. 4: Using short-read data of SARS-CoV-2-infected Vero cells³, JUMPER identifies canonical and non-canonical transcripts that are well supported by long-read sequences of the same sample.**

As mentioned, JUMPER inferred nine non-canonical transcripts, denoted as X, Xʹ, 1abʹ, Sʹ, 3aʹ, 6ʹ, Eʹ, 7b* and Nʹ. Among these, transcripts 1abʹ, Sʹ, 3aʹ and 6ʹ encode for the 1ab polypeptide, spike protein S, accessory protein 3a and accessory protein 6, respectively. Transcripts X and Xʹ both contain the discontinuous edge going from position 68 to 15774, with the latter containing an additional discontinuous edge from position 26256 to 26284. The 5ʹ end of the common discontinuous edge occurs within TRS-L, whereas the 3ʹ end occurs in the middle of ORF1b but is out of frame with respect to the starting position of ORF1b (13468). Specifically, the start codon ‘ATG’ downstream of the 3ʹ end is located at position 15812 and occurs within nsp12 (RdRp) and the first stop codon is located at position 15896, encoding for a peptide sequence of 28 amino acids. Interestingly, when we examined the reference genome, we observed matching sequences ‘GAACTTTAA’ near the 5ʹ and 3ʹ junctions of the discontinuous edge common to X and Xʹ, possibly explaining why the viral RdRp generated this jump (Supplementary Fig. 9a, b). Strikingly, both matching sequences are conserved within the Sarbecovirus subgenus but not in other subgenera of the Betacoronavirus genus (Supplementary Fig. 9a, c). To further corroborate this transcript, we examined short- and long-read SARS-CoV-2 sequencing samples from the NCBI Sequence Read Archive (SRA). Specifically, we looked for the presence of reads potentially originating from transcript X focusing on high-quality samples with 100 or more leader-spanning reads (reads whose 5ʹ end maps to the TRS-L region). We say a read r supports a transcript T if the discontinuous edges of r exactly match those of T, i.e. π(r) ⊆ π(T) and ∣σ^⊕(r)∣ = ∣σ(T)∣ (Supplementary Fig. 10). We found ample support for transcript X in both short- and long-read samples on SRA, with 100 out of 351 short-read samples and 81 out of 653 long-read samples having more than 0.1% of leader-spanning reads supporting transcript X (Supplementary Fig. 11). We note that although this discontinuous transcription event was also observed in ref. ⁵, the authors found no evidence of this transcript leading to a protein product in the ribo-seq data. Further research into a potentially regulatory function of this transcript is required.

As stated, the difference between transcripts X and Xʹ is that the latter includes an additional discontinuous edge, corresponding to a short jump of ~27 nucleotides between positions 26256 and 26284. This is an in-frame deletion inside ORF E, resulting in the loss of nine amino acids that span the N-terminal domain (four amino acids) and the transmembrane domain (five amino acids) of the E protein³⁷. A similar in-frame deletion of 24 nucleotides (from position 26259 to 26284) was observed by Finkel et al.⁵ that resulted in the loss of a subset of eight out of the nine amino acids in the deletion that we observed. Furthermore, it is possible that this common deletion is being selected for during passage in Vero E6 cells, which were used by both Kim et al.³ and Finkel et al.⁵. Non-canonical transcripts Sʹ, 3aʹ and Eʹ also contain the same discontinuous edge from position 26256 to 26284. While transcript Eʹ produces a version of protein E with nine missing amino acids, transcripts Sʹ and 3aʹ produce complete viral proteins S and 3a, respectively. Non-canonical transcript 6ʹ differs from the canonical transcript 6, containing a jump from position 27886 to 27909. This jump is downstream of ORF6 and therefore does not disrupt the translation of accessory protein 6. Similarly, transcript 1abʹ has a single jump from position 26779 to 26817, which is downstream of the ORF1ab gene and therefore will yield the complete polypeptide 1ab. Transcript 7b*, on the other hand, has a single discontinuous edge from position 71 to 27762. The start codon ‘ATG’ downstream of the 3ʹ end occurs at position 27825, maintaining the frame of 7b, and thus leading to an N-terminal truncation³ of 23 amino acids. Interestingly, transcript 7b and transcript 7b* appear with similar abundances in our solution. Finally, transcript Nʹ has one canonical discontinuous edge from TRS-L (position 65) to the transcription regulating body sequence (TRS-B) region corresponding to ORF N (position 28255) and an additional jump from position 28525 to 28577, which leads to an in-frame deletion of 17 amino acids in the N-terminal RNA-binding domain^38,39 of ORF N. Thus, with the exception of transcripts X and Xʹ, the non-canonical transcripts identified by JUMPER either produce complete viral proteins (1abʹ, Sʹ, 3aʹ, 6ʹ), contain in-frame deletions in the middle of known proteins (Eʹ, Nʹ) or produce N-terminally truncated proteins (7b*).

One of the major findings of the Kim et al. paper³ is that the SARS-CoV-2 transcriptome is highly complex owing to numerous non-canonical discontinuous transcription events. Strikingly, our results show that these non-canonical transcription events do not significantly change the resulting proteins. Indeed, we find that four out of the nine non-canonical transcripts produce a complete known viral protein and the total abundance of the predicted transcripts that produce a complete known viral protein is 0.968. Moreover, these predicted transcripts account for more than 90% of the reads in the sample according to the estimates provided by SALMON.

Typically, reads from short-read sequencing samples are not long enough to contain more than one discontinuous edge. As a result, short-read data can only provide direct evidence for transcripts with closely spaced discontinuous edges. For instance, we observed ample support (63485 short reads) for the predicted non-canonical transcript Eʹ, which has two discontinuous edges (69, 26237) and (26256, 26284), in short-read data due to the close proximity of the two discontinuous edges (i.e. the discontinuous edges are only 26256 − 26237 = 19 nucleotides apart). The other non-canonical transcripts with multiple discontinuous edges, i.e. Xʹ, Sʹ, 3aʹ, 6ʹ and Nʹ, have edges that are too far apart to be spanned by a single short read. Using the long-read sequencing data of this sample, we detected supporting long reads that span the exact set of discontinuous edges of all 9 non-canonical transcripts (Fig. 4c). Moreover, we found support for the canonical transcripts as well (Supplementary Fig. 12). Thus, all transcripts identified by JUMPER from the short-read data are supported by direct evidence in the long-read data.

In summary, using JUMPER, we reconstructed a detailed picture of the transcriptome of a short-read sequencing sample of Vero cells infected by SARS-CoV-2. While existing methods failed to recall even the reference transcriptome, JUMPER identified transcripts encoding for all known viral protein products. In addition, our method predicted non-canonical transcripts, whose presence we subsequently validated on a long-read sequencing sample of cells from the same cell line.

Viral transcript assembly in SARS-CoV-2-infected A549 cells with and without treatment

To demonstrate that JUMPER can be used to understand the effect of drugs on the viral transcriptome, we analyzed a recent dataset by Blanco et al.²⁵ who studied the host transcriptional response to SARS-CoV-2 and other viral infections using various cell lines. We focused on A549 lung alveolar cell line samples that were sequenced after 24 h of SARS-CoV-2 infection. There are a total of eight samples, four technical replicates that were pre-treated with ruxolitinib for 1 h before the infection and four technical replicates that were untreated. Ruxolitinib is a JAK1 and 2 kinase inhibitor, which blocks type-I interferon (IFN-I) signaling necessary to engage cellular antiviral defenses^40,41. Specifically, the four samples without treatment are SRR11573904 (median depth of 86), SRR11573905 (median depth of 85), SRR11573906 (median depth of 89), and SRR11573907 (median depth of 89), and the four samples treated with ruxolitinib are SRR11573924 (median depth of 90), SRR11573925 (median depth of 91), SRR11573926 (median depth of 91), and SRR11573927 (median depth of 92). We used fastp to trim the short reads (trimming parameter set to 10 nucleotides) and we aligned the resulting reads using STAR in two-pass mode. We ran JUMPER with the 35 most abundant discontinuous edges in the segment graph. Similarly to the previous analysis, we restricted our attention to transcripts identified by JUMPER that have more than 0.001 abundance as estimated by SALMON²³.

SCALLOP, run with default parameters (Supplementary Note C.2), identified at most two transcripts for each sample encoding for different variants of ORF N. JUMPER identified a total of 47 transcripts across the eight samples, with 18 of these transcripts present in both ruxolitinib treated and untreated samples (Supplementary Fig. 13a, c). We observed that samples with pre-treatment of ruxolitinib cumulatively have fewer transcripts compared to the number of transcripts from samples without any treatment (29 vs. 36 transcripts, Fig. 5a). Strikingly, all the transcripts that are present in two or more samples were also present across the two groups of samples (treated and untreated). Focusing on the 18 common transcripts, Supplementary Fig. 11d shows the total number of samples that contain each of these 18 transcripts. A subset of 13 out of these 18 transcripts produce all known canonical viral proteins except 7b. Figure 5b shows the abundance of the transcripts yielding functional proteins in the samples along with ‘NC’ depicting the abundance of transcripts producing either non-canonical or non-functional viral proteins. The abundance of the canonical transcripts, except 1ab, is slightly higher in samples with treatment compared to the samples without treatment. Consequentially, the abundance of non-canonical transcripts is lower in samples with treatment compared to samples without treatment.

Fig. 5: JUMPER enables analysis of drug response in SARS-CoV-2-infected cells25 at the transcript level. — **Fig. 5: JUMPER enables analysis of drug response in SARS-CoV-2-infected cells²⁵ at the transcript level.**

There are five non-canonical transcripts, including ∇M, NC1, and NC2, which do not encode for known SARS-CoV-2 proteins but are explained by matching motifs near the 5ʹ and 3ʹ ends of the non-canonical discontinuous edges, described in Supplementary Table 4, potentially mediating the jump made by the RdRp to generate these transcripts. Specifically, while transcript ∇M contains a canonical discontinuous edge from the leader to the known TRS-B region of M, it also contains an out-of-frame deletion such that the transcript yields a 116 amino acids long protein which matches the M protein for the first 87 amino acids (total length of protein M is 222 amino acids). Both transcripts NC1 and NC2 contain only one jump with the 5ʹ end within ORF1a. The 3ʹ end of the jump lies within ORF7b and ORF N for transcript NC1 and transcript NC2, respectively. The remaining two non-canonical transcripts, ΔS1 and ΔS2, have in-frame deletions in the region that encodes for the spike protein.

ΔS1 contains an in-frame jump from position 23593 to 23630 resulting in a 12 amino-acid in-frame deletion, while ΔS2 contains a jump from position 23593 to 23615, which results in a 7 amino-acid in-frame deletion in the spike protein (Fig. 5d). Both these deletions overlap with the furin cleavage site (FCS), highlighted in Fig. 5d, which has been the focus of several recent studies^4,42,43. The authors of ref. ⁴ deduced that the deletion of the FCS enhances the ability of the virus to enter Vero cells and is selected for during passage in Vero E6 cells, a cell line that lacks a working type-I interferon response. The observation of ΔS1 and ΔS2 in infected A549 cell samples can be explained by the fact that Blanco et al.²⁵ propagated SARS-CoV-2 in Vero E6 cells prior to the infection of the A549 cells. Figure 5c shows that pre-treatment with ruxolitinib leads to an increase in the abundance of the three transcripts, S (median increase from 0.004 to 0.005), ΔS1 and ΔS2 (median increase from 0.0011 to 0.0012), with the increase being most significant for ΔS1 (median increase from 0.008 to 0.012) with a p value of 0.015 with the Mann−Whitney U test. This shows that the response of different transcripts of the virus to treatment of drugs can differ significantly. In summary, we find that JUMPER enables transcript-level analysis of the viral response to drug treatments.

Viral transcript assembly in SARS-CoV-1- and MERS-CoV-infected cells

To show the generalizability of our method, we considered two other coronaviruses, SARS-CoV-1 and MERS-CoV. We describe the results for two SARS-CoV-1-infected cell samples here and the analysis of three MERS-CoV-infected cell samples is described in Supplementary Note C.5.

We analyzed two published samples of human Calu-3 cells infected with SARS-CoV-1²⁴, SRR1942956 and SRR1942957, with a median depth of 21,358 and 20,991, respectively. These two samples originate from the same SRA project (‘PRJNA279442’) whose metadata states that both samples were sequenced 24 h after infection. We used fastp to trim the short reads (trimming parameter set to 10 nucleotides) and we aligned the resulting reads using STAR in two-pass mode. We ran JUMPER with the 35 most abundant discontinuous edges in the segment graph. As observed previously, SCALLOP only identified a single transcript corresponding to ORF N in both the samples. By contrast, JUMPER reconstructed 25 transcripts in sample SRR1942956 and 26 transcripts for sample SRR1942957. Similarly to the previous analysis, we discuss the transcripts identified by JUMPER that have more than 0.001 abundance as estimated by SALMON. There are 13 such transcripts for sample SRR1942956 and 13 such transcripts for sample SRR1942957 (Fig. 6).

Fig. 6: JUMPER identifies canonical and non-canonical transcripts that recur in two short-read sequencing samples of SARS-CoV-1-infected Calu-3 cells24. — **Fig. 6: JUMPER identifies canonical and non-canonical transcripts that recur in two short-read sequencing samples of SARS-CoV-1-infected Calu-3 cells²⁴.**

SARS-CoV-1 has a genome of length 29,751 bp, and consists of 13 ORFs (1ab, S, 3a, 3b, E, M, 6, 7a, 7b, 8a, 8b, N and 9b), two more than SARS-CoV-2. For both samples, JUMPER identified canonical transcripts corresponding to all the ORFs of SARS-CoV-1 except ORF3b, ORF8b and ORF9b (Fig. 6). Notably, ORF8b and ORF9b share transcription regulating body sequences (TRS-B) with ORF8a and ORF N respectively⁴⁴. More specifically, ORF9b (from position 28130 to 28426) is nested within ORF N (from position 28120 to 29388) with start codons only 10 nucleotides apart and consequently shares the same TRS-B as ORF N. ORF8b (from position 27864 to 28118) intersects with ORF8a (from 27779 to 27898) and previous studies have failed to validate a TRS-B region for ORF8b⁴⁴. One possible way that these ORFs are translated is due to ribosome leaky scanning, which was also hypothesized to lead to ORF7b translation in SARS-CoV-2 ⁵. This explains why JUMPER was unable to identify transcripts that directly encode for 8b and 9b. Regarding ORF3b, JUMPER did identify a canonical transcript corresponding to 3b in both samples, but the SALMON estimated abundances (0.00044 for SRR1942956 and 0.0005 for SRR1942957) for these transcripts were below the cut-off value of 0.01. Finally, we note that the relative abundances of the canonical transcripts are consistent for the two samples (Fig. 6) and ranked in the same order (Supplementary Fig. 14), with ORF7b being the least abundant and ORF N having the largest abundance, in line with the observations in SARS-CoV-2-infected cells described in the previous sections.

Figure 6 shows the three non-canonical transcripts predicted by JUMPER in the two SARS-CoV-1 samples, designated as 1abʹ, Mʹ and N*. Since these non-canonical transcripts are in very low abundance, we see some discrepancy in the prediction between the two samples. The first non-canonical transcript 1abʹ with a single short discontinuous edge from position 26131 to 26156 is detected in both samples and has a very low abundance compared to the canonical transcript 1ab (0.0133 for 1ab vs. 0.002 for 1abʹ in SRR1942956, and 0.013 for 1ab vs. 0.0039 for 1abʹ in SRR1942956). Since the discontinuous edge occurs downstream of the stop codon of 1ab (position 21492), the 1abʹ transcript encodes for the complete polypeptide 1ab. The second non-canonical transcript Mʹ has two discontinuous edges: a canonical discontinuous edge from TRS-L (position 65) to TRS-B of ORF M (position 26351) and a non-canonical discontinuous edge from 29542 to 29661 in the 3ʹ untranslated region (UTR). As such, this transcript encodes for the complete M protein. This transcript is detected in SRR1942956 with a very low abundance of 0.001 and is detected at an even lower abundance of 0.0008 in SRR1942957, which is below the cut-off threshold of 0.001. The third non-canonical transcript, denoted by N*, has a single discontinuous edge from position 65 to 29003. While JUMPER and SALMON detected this transcript only in sample SRR1942957 with a low abundance of 0.003, we do observe 119 reads in SRR1942956 (compared to 151 reads in SRR1942957) that support this edge, suggesting that N* might be present in the latter sample at too small of an abundance to be detected. Transcript N* is interesting because the first ‘ATG’ downstream of the 3ʹ end of its discontinuous edge occurs at position 29071 maintaining the frame of N (which starts at position 28120). Thus transcript N* encodes for an N-terminally truncated version of protein N with 105 amino acids (while protein N is composed of 422 amino acids) and only contains part of the C-terminal dimerization domain³⁸ of protein N. This is similar to transcript 7b* in the SARS-CoV-2-infected Vero cell sample, which yields a N-terminal truncated version of protein 7b. Detection of non-canonical transcripts such as Eʹ and 7b* in SARS-CoV-2 and Nʹ in SARS-CoV-1 suggests that generation of N-terminally truncated proteins might be a common feature in coronaviruses.

In summary, JUMPER can used to to reconstruct the transcriptome of all viruses in Nidovirales and lead to discovery of novel viral transcripts and corresponding viral proteins. While this section focused on SARS-CoV-1, we observed similar results for MERS-CoV samples, where JUMPER reconstructed transcripts corresponding to all the ORFs with well-supported TRS-B sites along with consistent abundances across the three samples (see Supplementary Note C.5).
